Contents
- What is the EVE Online Excel add-in
- Installation
- EVE Online Icon
- Adding Character
- Functions
- Using Functions
- Example Workbook
- Updating
- Bug reporting
What is the EVE Online Excel add-in
The EVE Online Excel Add-In allows for easy access to the game data in Microsoft Excel.
The data is available for both public information like universe or blueprint data, and for private information like your character or corporation assets, or wallet records.
- Excel 2019 or later on Mac
- Excel on Mac (Microsoft 365)
- Excel on Windows (Microsoft 365)
- Excel on the web (Free for personal use)
Installation
The add-in can be downloaded from Microsoft Store accessed directly through Excel.

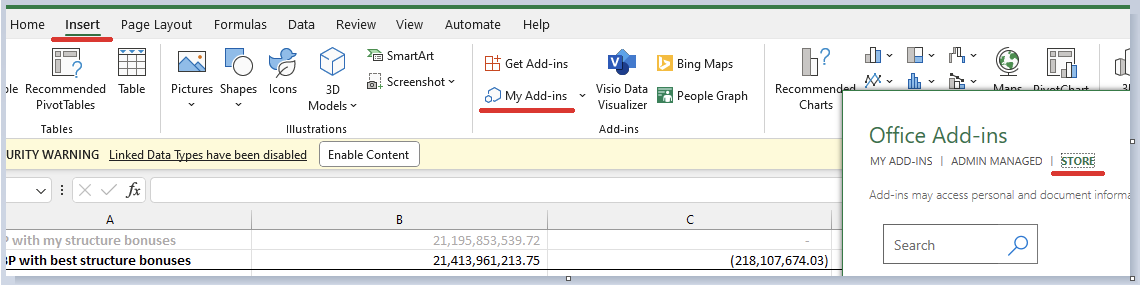

To install the add-in:
- Open Excel on desktop or access the Web Excel
- Open the Insert Menu
- Open the My Add-ins or Add-ins menu
- Select STORE tab
- Search for EVE Online

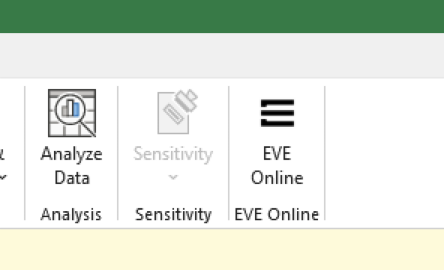

After installing the add-in, a new EVE Online button will appear at the end of the Home menu.
EVE Online Icon

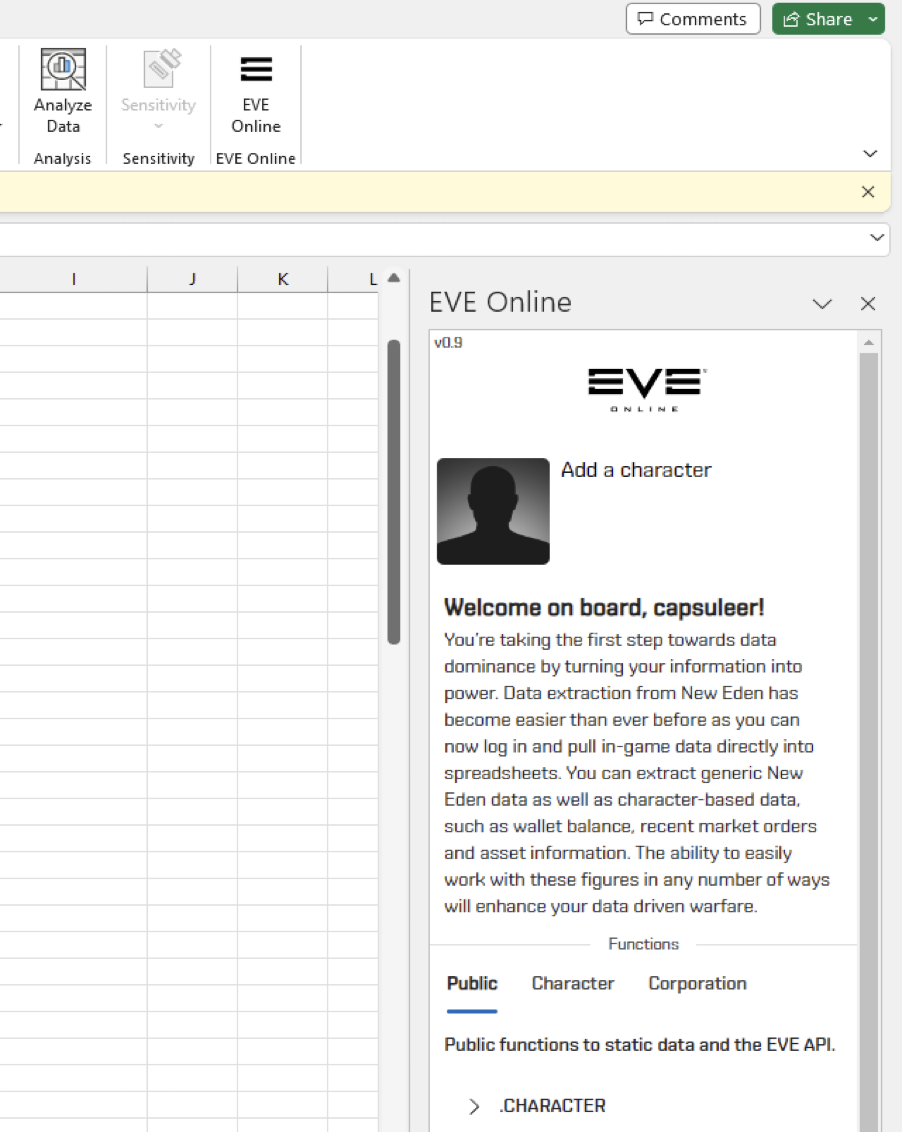

Clicking the EVE Online icon opens the EVE Online Add-In side panel. The panel allows for adding your characters by logging in with your EVE accounts.
Adding Character
Clicking on Add character will open a login window. Once you login, you can select a character from that account and click authorize. A new window will show you a list of things you are authorizing for import. Scroll down to the bottom and click on authorize to allow excel to import information about your selected character. You can add additional characters by clicking on the add character button again.
If you click on add a character again you will be able to select another character on the same account or click on Switch user. Clicking on switch user allows you to login to another account to pick characters from there.
If you click add a character again you will be able to select a character to the current logged in account. If you wish to add a character from a previous account, you will need to click switch user again and login to that account again.
Functions
Functions are split into three categories:
- Public
- Character
- Corporation
Functions that do not require adding any characters and which provide publicly available information about characters, corporations, blueprints, item types, market orders, etc.
Functions that require adding at least one character and which provide private information about assets, clones, market orders, skills, wallet records, and so on for the characters that have been added.
Functions that require adding at least one character that holds appropriate roles within its corporation and which provide information about corporation assets, industry jobs, market orders, etc.
Using Functions
All functions of the add-in are grouped in EVEONLINE.function_name namespace.
Example:
=EVEONLINE.TYPE(645)
=EVEONLINE.ALLIANCE(434243723)
Some functions take [nested] parameter. If set to TRUE, the returned data entities will contain further data entities. If set to FALSE, the returned data entities will not contain further data entities inside them but only the name values of their nested entities instead.
Nested entities increase the size of the return payload and can be too big to render for large data sets, especially in the web version of Excel.
The add-in functions return data in form of an entity data type or an array of entities.
Data entity takes one cell and may have multiple attributes. The value of an attribute can be a string or number, or another data entity.

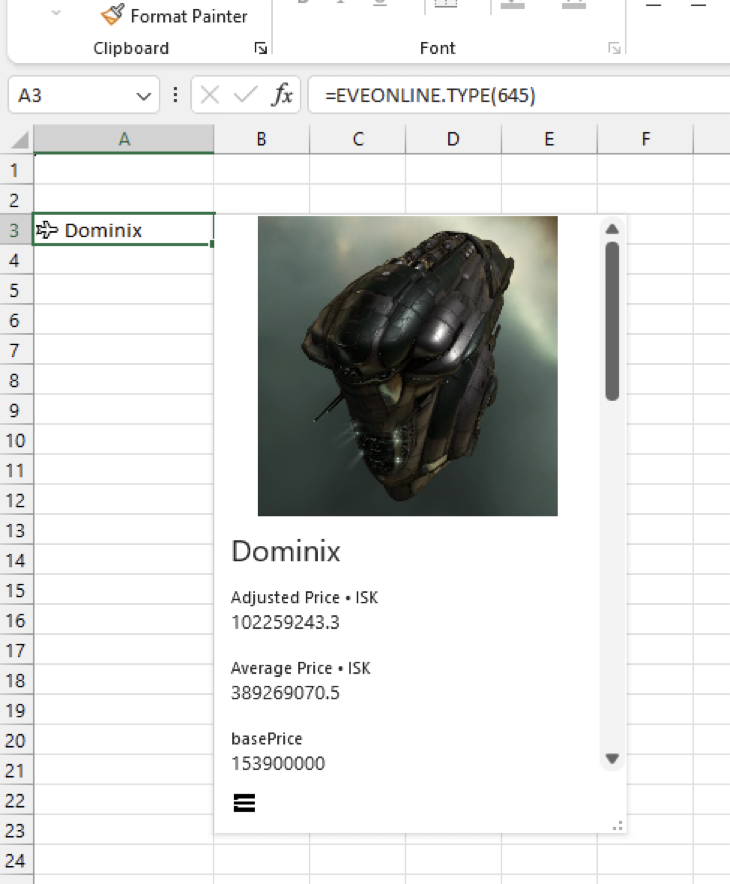

The attributes of data entity can be viewed in a card by clicking on data entity’s icon in the cell.

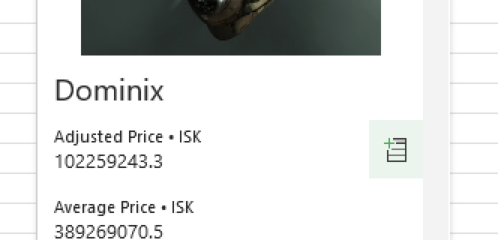

By pressing the extract button next to an attribute, it will extracted to the next available cell to the right. This can be repeated for each attribute.

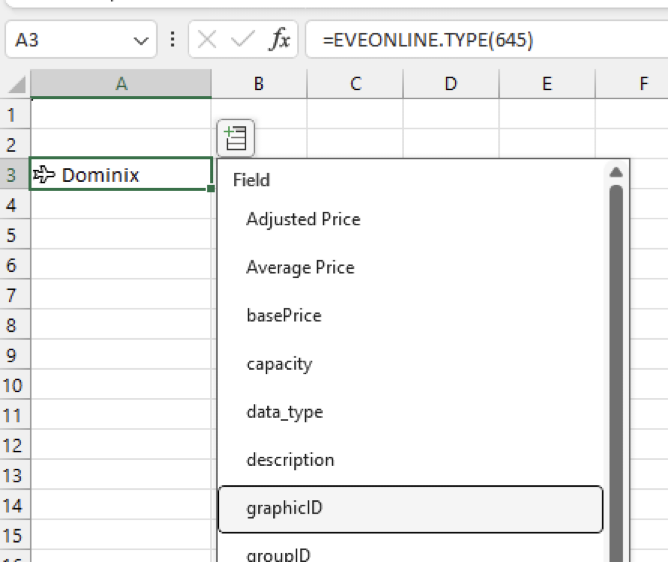

The same can be achieved by clicking on the extract button on the entity itself. This will present a list of all its attributes with an option to extract them to the cell to the right.
The attributes can also be accessed with “.” notation directly from the entity.
- =EVEONLINE.TYPE(645).description
Or from the reference to the entity’s cell

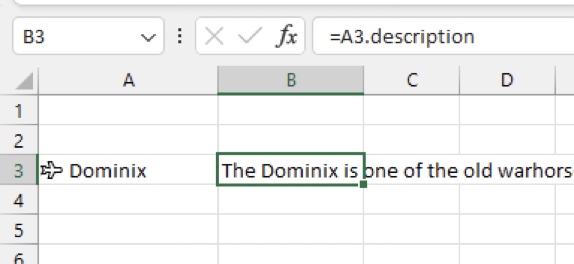

- =A3.description (if the entity is in the cell A3)
Chained “.” notation allows for accessing nested entities' attributes.
=EVEONLINE.BLUEPRINT(999).manufacturing.products.type.basePrice
Some functions return an array of entities.

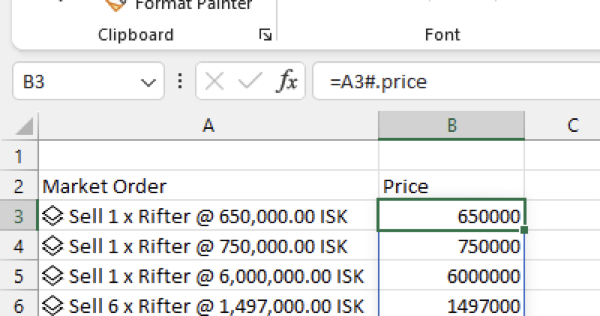

Excel allows referring to an attribute of multiple entities in an array with # notation.
HERE is an example workbook using several functions of the add-in to demonstrate its capabilities. Save it to your desktop or OneDrive folder to be able to edit it.
It is a good starting point for using the add-in as it contains several ready-made reports that will automatically populate after adding your characters.
- Characters information
- Skills summary
- Clones
- Finances
- Market Transactions and Orders
- Item’s Market Details
- Assets
- Industry Jobs
- Blueprints
- Manufacturing Profitability Calculator
Updating
If the user is already running excel when an update occurs, the user will have to reload the page to get the update. If an update occurs while the player is offline the plugin should update the next time Excel is started.
Bug reporting
To report bugs with the add-in press F12 while in-game and click on the Report Bug button, then select the Report bug option. Make sure to detail the issue and add any screenshots you may have to the bug report.
